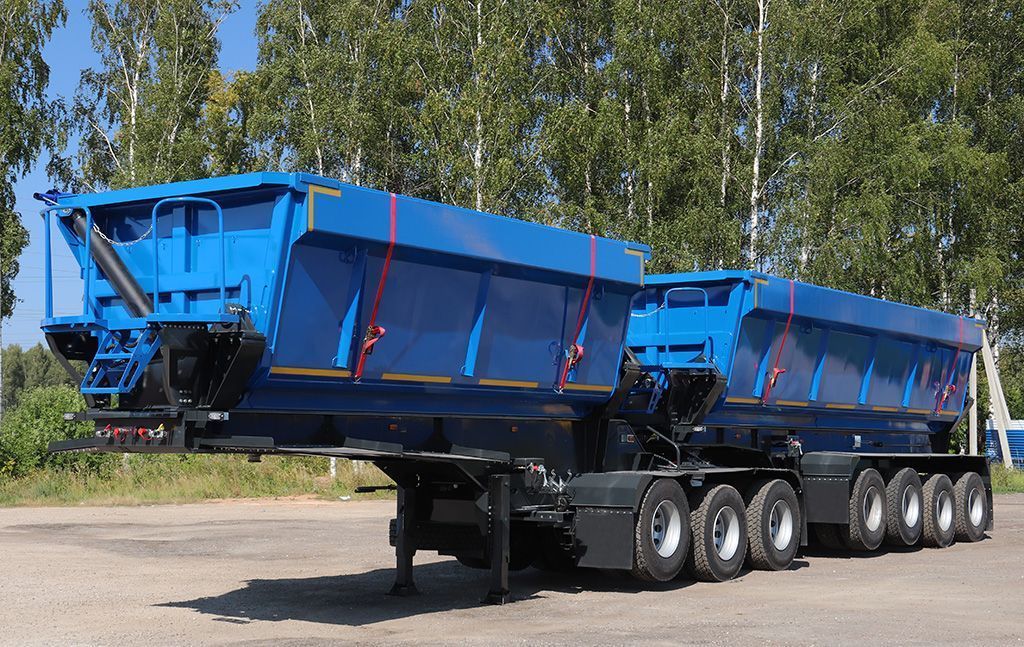

Tonar-9541 (45 / 48,3 cubic meters)
Technical parameters
DIMENSIONS:
Kingpin height, mm
1 400 / 1 300
Body volume, m³
45 / 48,3
TECHNICAL CAPACITY:
Curb weight, kg
23 000 / 19 700
Payload, kg
63 000 / 54 300
Total weight, kg
90 000 / 74 000
AXLES:
Suspension
mechanical spring (air spring by customer request)
Tyres
tubeless 445/65R22,5 | 385/65R 22,5
Equipment
Array
(
[0] => Array
(
[ID] => 13491
[~ID] => 13491
[IBLOCK_ID] => 48
[~IBLOCK_ID] => 48
[NAME] => 9541
[~NAME] => 9541
[PROPERTY_SSU_VALUE] => 1 400 / 1 300
[~PROPERTY_SSU_VALUE] => 1 400 / 1 300
[PROPERTY_SSU_VALUE_ID] => 82860
[~PROPERTY_SSU_VALUE_ID] => 82860
[PROPERTY_TYPE_VALUE] => side tipper b-double
[~PROPERTY_TYPE_VALUE] => side tipper b-double
[PROPERTY_TYPE_VALUE_ID] => 82861
[~PROPERTY_TYPE_VALUE_ID] => 82861
[PROPERTY_CARCASS_VALUE] => steel, tipping to the left hand side
[~PROPERTY_CARCASS_VALUE] => steel, tipping to the left hand side
[PROPERTY_CARCASS_VALUE_ID] => 82862
[~PROPERTY_CARCASS_VALUE_ID] => 82862
[PROPERTY_WEIGHT_VALUE] => 45 / 48,3 m³
[~PROPERTY_WEIGHT_VALUE] => 45 / 48,3 m³
[PROPERTY_WEIGHT_VALUE_ID] => 82863
[~PROPERTY_WEIGHT_VALUE_ID] => 82863
[PROPERTY_AXIS_COUNT_VALUE] => 7
[~PROPERTY_AXIS_COUNT_VALUE] => 7
[PROPERTY_AXIS_COUNT_VALUE_ID] => 82864
[~PROPERTY_AXIS_COUNT_VALUE_ID] => 82864
[PROPERTY_STINGRAY_VALUE] => 28 + 2 spare wheel
[~PROPERTY_STINGRAY_VALUE] => 28 + 2 spare wheel
[PROPERTY_STINGRAY_VALUE_ID] => 82865
[~PROPERTY_STINGRAY_VALUE_ID] => 82865
[PROPERTY_BACKLIGHT_VALUE] => mechanical spring
[~PROPERTY_BACKLIGHT_VALUE] => mechanical spring
[PROPERTY_BACKLIGHT_VALUE_ID] => 82866
[~PROPERTY_BACKLIGHT_VALUE_ID] => 82866
[PROPERTY_AWNING_VALUE] => manual spring
[~PROPERTY_AWNING_VALUE] => manual spring
[PROPERTY_AWNING_VALUE_ID] => 82867
[~PROPERTY_AWNING_VALUE_ID] => 82867
[PROPERTY_HYDRO_VALUE] => two lines, made in IPH (Italy)
[~PROPERTY_HYDRO_VALUE] => two lines, made in IPH (Italy)
[PROPERTY_HYDRO_VALUE_ID] => 82868
[~PROPERTY_HYDRO_VALUE_ID] => 82868
[PROPERTY_BRAKE_SYS_VALUE] => Wabco, brake drums
[~PROPERTY_BRAKE_SYS_VALUE] => Wabco, brake drums
[PROPERTY_BRAKE_SYS_VALUE_ID] => 82869
[~PROPERTY_BRAKE_SYS_VALUE_ID] => 82869
[PROPERTY_ADIT_195_VALUE] => tool box, 2 reverse stops, spare wheel carrier
[~PROPERTY_ADIT_195_VALUE] => tool box, 2 reverse stops, spare wheel carrier
[PROPERTY_ADIT_195_VALUE_ID] => 82870
[~PROPERTY_ADIT_195_VALUE_ID] => 82870
)
)
Type
side tipper b-double
Body
steel, tipping to the left hand side
Qty of the wheels
28 + 2 spare wheel
Suspension
mechanical spring
Hydrocylinder
two lines, made in IPH (Italy)
Brake system
Wabco, brake drums
Additional
tool box, 2 reverse stops, spare wheel carrier
